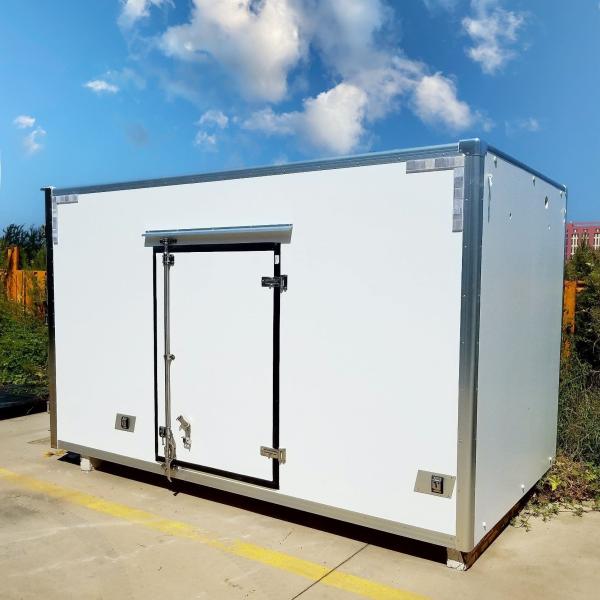

Insulated Truck Body For Dry Freight Logistics Trucks

Certification : ISO9001

Model NO. : GET. 6KDX. XBW.

Min.Temperature Range : -18 Degree Centigrade

Wall Thickness and K Value : 82/90/105mm, 0.296 K.M2/W

Side Wall Material : Cfrt/FRP(Interior) +XPS+FRP(Exterior)

Floor : Aluminum Air Duct and Side Kick Plate

Portal and Rear Door : SS304 Portal with Two-Wings Full Open

Fire-Retardant Grade : "B", According to En 13501-01

Shipment : Complete Built up (CBU) or Flat-Packed

Driving System Parts : Wheel

Main Market : Southeast Asia

Transport Package : CKD /SKD /CBU Shipped in Container

Specification : 14750x3200x3200

Trademark : GET VEHICLES GET COLD-CHAIN

Origin : China

HS Code : 8707909000

Supply Ability : 200 Unit/Units Per Month

Customization : Available

Material : FRP+XPS+FRP

Type : Refrigeration Cargo Truck Box

Contact Now

GET VEHICLES | COLD CHAIN BOX Refrigeration Truck body ,Thanks to the modular system, our box body can be individually configured for a wide range of applications. Logistics challenges are rising with consumers' more exacting requirements. The GET COOL truck box body is a high-performance truck with box body designed to meet individual requirements, which fits all well-known truck manufacturers' chassis.

Insulated Truck Body For Dry Freight Logistics Trucks

Insulated Truck Body for dry Freight Logistics Trucks
MODEL:			GET.6KDX.XBW.
An Insulated Truck Body is a box designed with XPS /PU insulation foams to carry dry freight temperatures sensitive cargos but no need for the low temperature. Especially for the hot weather in summer to hold the interior of the box not too hot , our box can keep the box temperature changes 1 ºC in 4-5 hours.
GENERAL Parameters
K .Value for the Composite Box		0.295 W/m² ºC
Max. Overall Length	48 ft	14,750 mm	0~14750mm can choose
Max. Overall Width	10 ft	3,200 mm	0~ 3200 mm can choose
Max. Overall Height	10 ft	3,200 mm	0~3200 mm can choose
Max. Floor Thinckness	4 .13 inch	105 mm	45-105mm can choose
Side Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Front Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Rear Door Panel	3 .31 inch	84 mm	45-105mm can choose
Roof Wall	4 .13 inch	105 mm	45-105mm can choose

FRP 2mm/PUR:40kg/m³±2 FRP Panels (Excluding Floor)
Panel Details	Wall types	Thickness	Structure( Inter.Skin + Insulation+Exter. Skin)	Remark
	Side Wall Panel	80.00mm	FDA "Approvable" CFRP + XPS + FRP
	Front Wall Panel	80.00mm	FDA "Approvable" CFRP + XPS + FRP	With Refrigeration Units Installation Embedded Beam
	Rear Wall Panel	80.00mm	FDA "Approvable" CFRP + XPS + FRP	with Door Hinger Installation Embedded Strengthen
	Roof Wall Panel	90.00mm	FDA "Approvable" CFRP (Interior) + XPS + Anti UV FRP (exterior)
	Floor Panel	80.00mm	Aluminum Air Duct (Interior)+PUR (injection Foaming 45kg/m³)+FRP	With Cross Beam Embedded

Standard: Floor with Alu.Duct for America Market

Best Cold Air Circle

Rear Door

Standard Floor : Aluminum Duct

(H=15mm,20mm,35mm,50mm)

Aluminum Extrusion

90 Degree Aluminum Extrusion, L shap or Round Corner Choice

Cargo Fix Racks

Stainless Steel material for cargo fix installed on the side wall interior.

What is refrigerated truck box body?

Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers' request and designing request.

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

What's the material of your refrigerated truck body?

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

If want the price, what should offer us the information?

You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
basic information.

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

How long life of your truck body?

It depends how will use it. Normally, the life is about 15~20 years
