3 Axles 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer

Model NO. : 9583GYQ

Code & Material : Q370r

Design Pressure : 1.61MPa

Transport Package : Bare Package

Specification : 58000L

Trademark : GET ENERGY GET VEHICLES

Origin : China

Supply Ability : 100 Unit/Units Per Month

Customization : Available

Tanker Material : Carbon Steel Q380r

Capacity : 58100L

Contact Now

58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer  with 3 axles for LPG

Product Description



Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles.

As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.

G.E.T Vehicles provides light weight and high-volume Medium-pressure Gas
(LPG) tank semi-trailer with 3 axles and more to customers. With 61900-liter max volume, 30,000 filling weight, European ADR standard and ASME STANDARD, it is an optimal transporter for ENERGY logistic industry.


Series of products: vehicles for transportation of LPG, propane, propylene, liquid ammonia, etc.
Detailed Photos

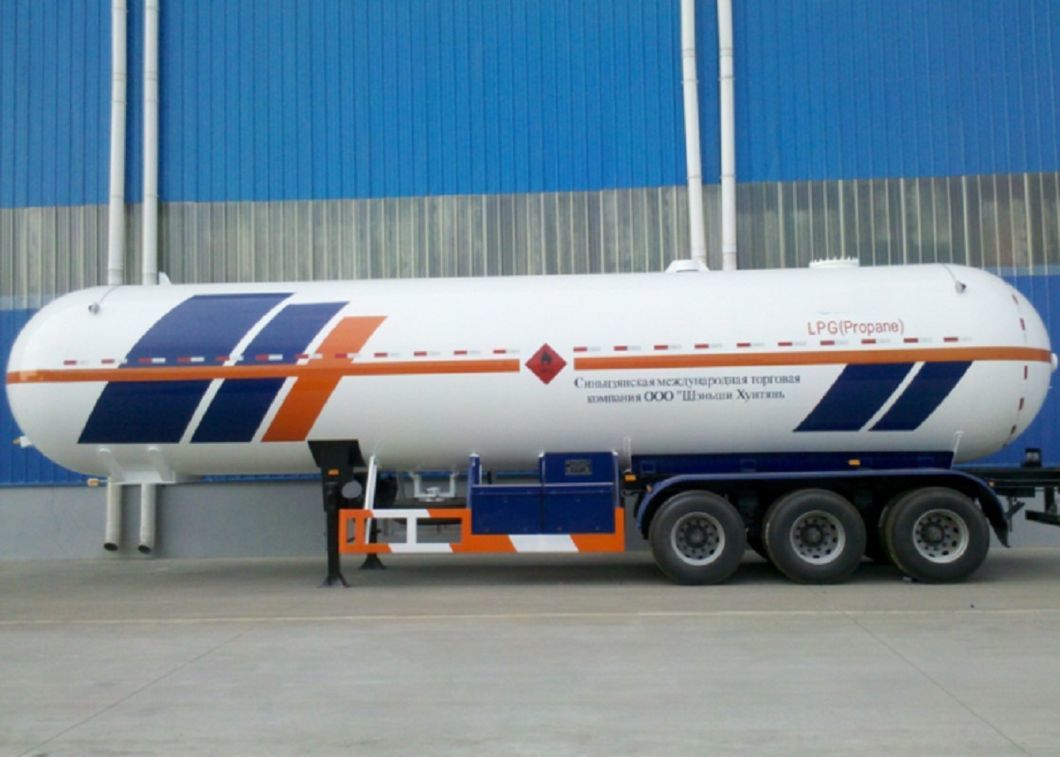

3 Axles 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer

Product Parameters



58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer  with 3 axles for LPG
Model 9583GYQ Capacity 58.1m³
Truck  To be provided by the end user QTY AS LISTED ABOVE
Design pressure 1.61MPa MAWP 1.61 MPa
Code & Material Q370R Heads One Elliptical head and one Spherical head
Height from the 5th wheel top surface to the ground (when the truck is at empty):To be provided by the end user   mm
Nitrogen replacement is required.
Tank Pressure relief valve As above 2 pcs
Level gauge As above On the side of the tank
Drain No
Manway DN450
Steel baffle  Steel
Filling & Discharge System  Control method  Mechanical
Liquid discharge  Single liquid discharge system  Side of the trailer
Valve box  Double valve boxes Side of the trailer
Other Fittings Tool box  Double  tool boxes  Side of the trailer
Mudguard  Steel mudguard
Ladder No
Level gauge armrest  No
Water tank or hose box NO
Fire extinguisher 2 × 8kg
King pin JOST  2' king pin
Landing gears  JOST separate winding,  A400
model A400
Running Gear Slanted or horizontal
Suspension  Chinese Spring suspension 4pcs
Spare wheel carrier Single
ABS  KORMEE brand  4S/2M
Rim Steel rim  9×22.5
Axle BPW brand  3 PCS 12Ts capacity
Tire brand  Double coin 13 PCS (Including one spare tire)
Tire dimension   12R22.5 Tubeless
Light LED lamps; 24V voltage.
Side protection  Steel
Parking brake  Pneumatically operated
Earthing Electrostatic strip
Surface Reflective stickers  3M reflective stickers
Painting & logo  TO BE CONFIRMED IN THE CONTRACT
Special Requirement TO BE CONFIRMED IN THE CONTRACT
Stability System
The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.
 		 3 Axles 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer
Operation Monitoring System
Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All the PRV Valve , Emergency valve ( liquid Phase and Gas Phase) ,vent valves, gas adaptor , Thermometer and the ball valves are mostly imported from America Fisher or Rego
 		 3 Axles 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer
Lift-up Axle System
Lift-up Axle System can increase driving distance and reduce costs of tires significantly. Test results indicate that the total distance of tires mounted on this system can be up to 750000 km, twice or more than traditional system.
 		 3 Axles 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer
Air Suspension
Comparing to traditional leaf spring suspension, air suspension can adjust the extent of soft or firm and the height of the vehicle, provide enhanced performance of shock-absorbing and driving safety.
 		 3 Axles 58000L Liquefied Petroleum Gas Lorry Tanker Semi Trailer
